HAL Id: tel-02967047
https://tel.archives-ouvertes.fr/tel-02967047
Submitted on 14 Oct 2020HAL is a multi-disciplinary open access archive for the deposit and dissemination of sci-entific research documents, whether they are pub-lished or not. The documents may come from teaching and research institutions in France or abroad, or from public or private research centers.
L’archive ouverte pluridisciplinaire HAL, est destinée au dépôt et à la diffusion de documents scientifiques de niveau recherche, publiés ou non, émanant des établissements d’enseignement et de recherche français ou étrangers, des laboratoires publics ou privés.
interaction of a counter-rotating centrifugal compressor
van Thang Nguyen
To cite this version:
van Thang Nguyen. Experimental study of the rotor-rotor aerodynamic interaction of a counter-rotating centrifugal compressor. Fluids mechanics [physics.class-ph]. HESAM Université, 2020. En-glish. �NNT : 2020HESAE031�. �tel-02967047�
T
H
È
S
E
ÉCOLE DOCTORALE SCIENCES ET MÉTIERS DE L’INGÉNIEUR
Laboratoire d’Ingénierie des Fluides et des Systèmes Énergétiques
(LIFSE) - Campus de Paris
THÈSE
présentée par :
Van-Thang NGUYEN
soutenue le :
31 Août 2020
pour obtenir le grade de :
Docteur d’HESAM Université
préparée à :
École Nationale Supérieure d’Arts et Métiers
Spécialité : Mécanique des Fluides
Étude expérimentale de l’interaction
aérodynamique rotor-rotor pour un
compresseur centrifuge contrarotatif
THÈSE dirigée par :
Professeur Farid BAKIR
et co-encadrée par :
Docteur Amélie DANLOS
Docteur Richard PARIDAENS
Jury
Xavier CARBONNEAU, Professeur, ISAE-Toulouse Président
Pascal CHESSE, Professeur, Ecole centrale de Nantes Rapporteur
Miguel ASUAJE, Professeur, Simon Bolívar University Rapporteur
Kamel AZZOUZ, Docteur, VALEO Examinateur
Farid BAKIR, Professeur, Arts et Métiers Examinateur
Amélie DANLOS, Maître de conférence, Le Cnam Examinateur
Richard PARIDAENS, Docteur, Arts et Métiers Examinateur
Table of Contents
Table of Contents iii
List of figures vii
List of tables xvii
1 Introduction 1
1.1 Background . . . 1
1.1.1 History of centrifugal compressors . . . 1
1.1.2 Working principle of a centrifugal compressor . . . 2
1.1.3 Velocity triangles . . . 2
1.1.4 Energy transfer in centrifugal compressors . . . 3
1.2 Performance of centrifugal compressors . . . 5
1.2.1 Slip factor . . . 5
1.2.2 Dimensionless analysis . . . 9
1.2.3 Pressure ratio . . . 10
1.2.4 Efficiency . . . 10
1.2.5 Compressor performance map . . . 10
1.3 Applications of a counter-rotating system and state of art. . . 11
1.3.1 Axial turbomachines . . . 12
1.3.2 Centrifugal turbomachines . . . 14
1.4 Motivation . . . 17
2 Design of counter-rotating rotors 19 2.1 Reference rotor . . . 19
2.2 Counter-rotating rotors design . . . 20
2.2.1 First rotor design . . . 21
2.2.2 Second rotor design . . . 23
2.3 CRCC performance evaluation . . . 26
2.3.1 Rotor performances . . . 27
2.3.2 Compressor performances . . . 31
2.3.3 Effect of speed ratio θ = N1/N2 . . . 32
2.4 Conclusions . . . 35
3 RAICOR test bench design 37 3.1 Introduction of the existing test bench . . . 37
3.1.1 Description of the test bench operation . . . 37
3.1.2 Performance map of the SRCC . . . 37
3.2 CRCC components design . . . 39
3.2.2 CRCC test bench components design . . . 42
3.3 RAICOR test bench . . . 48
3.3.1 Description of Rotor - rotor Aerodynamic Interaction of a COunter-Rotating centrifugal compressor (RAICOR) test bench . . . 48
3.3.2 Uncertainties and measurement quantities . . . 49
3.3.3 Derived parameters . . . 54
3.4 Conclusions . . . 55
4 Experimental results 57 4.1 Limitation of the experiments . . . 57
4.2 Global performance . . . 57
4.2.1 First rotor rotates freely - second rotor is driven (case 1) . . . . 58
4.2.2 First rotor is fixed - second rotor is driven (case 2) . . . 62
4.2.3 Counter-rotating mode (case 3) . . . 64
4.2.4 Conclusions . . . 69
4.3 Influence of rotation speed ratio (θ) . . . 69
4.3.1 Effect of the speed ratio for a fixed speed of N2 = 9, 000rpm . . 70
4.3.2 Effect of the speed ratio for a fixed speed of N2 = 10, 000rpm . 71 4.3.3 Effect of the speed ratio for a fixed speed of N2 = 11, 000rpm . 72 4.3.4 Conclusions . . . 73
4.4 Similarity method . . . 78
4.4.1 Similarity method validation . . . 78
4.4.2 CRCC characteristics at the design speed of 16, 000rpm . . . 82
4.4.3 Conclusions . . . 82
4.5 CFD Analysis . . . 83
4.5.1 Meshing . . . 83
4.5.2 Mesh sensitivity analysis . . . 83
4.5.3 Validation of numerical simulation . . . 85
4.5.4 Flow assessment. . . 91
4.5.5 Conclusions . . . 98
5 Instability control and Extension of the operating range 101 5.1 Introduction . . . 101
5.2 Stability and instability control method . . . 104
5.3 Extension of the operating range . . . 113
5.4 CFD analysis in Co-rotating mode . . . 116
5.5 Conclusions . . . 119
6 Conclusions and perspectives 121 6.1 Summary . . . 121
6.2 Design of counter-rotating rotors . . . 121
6.3 Design of RAICOR test bench . . . 121
6.4 Experimental results . . . 122
6.4.1 Global performance . . . 122
6.4.2 Influence of rotation speed ratio (θ) . . . 122
6.4.3 Similarity method . . . 123
6.4.4 CFD analysis . . . 123
6.5 Instability control and extension of the operating range . . . 124
CHAPTER 0 Table of Contents
A APPENDIX I
A.1 Dimensioning method of a centrifugal rotor . . . I
A.1.1 Inlet velocity triangles . . . I
A.1.2 Outlet velocity triangles . . . II
A.1.3 Tracing blades in a meridional view . . . V
A.1.4 Tracing blades in two views . . . VIII
A.2 Theory of similarity method . . . X
A.3 Instability control method . . . XV
A.3.1 Instability control at the speed of N2 = 10, 000rpm . . . XV
A.3.2 Instability control at the speed of N2 = 11, 000rpm . . . XXII
A.4 Numerical simulation . . . XXVII
A.4.1 Governing equations . . . XXVII
A.4.2 Turbulence model . . . XXIX
A.4.3 Motion . . . XXIX
A.4.4 Interface . . . XXX
A.4.5 Boundary condition . . . XXX
A.4.6 Solving strategies . . . XXXI
B Résumé de thèse XXXIII
B.1 Introduction . . . XXXIV
B.2 Conceptions des rotors contrarotatif . . . XXXV
B.2.1 Conception du premier rotor . . . XXXVI
B.2.2 Conception du deuxième rotor . . . XXXVI
B.2.3 Évaluation des performances . . . XXXVIII
B.3 Banc d’essai RAICOR . . . XL
B.3.1 Adaptation avec le banc d’essai du compresseur conventionnel . XL
B.3.2 Banc d’essai RAICOR . . . XL
B.4 Résultats expérimentaux . . . XLI
B.4.1 Les limites des expérimentations . . . XLI
B.4.2 Performances globales du CRCC . . . XLII
B.4.3 Influence du rapport de vitesses du rotor (θ) . . . XLV
B.4.4 Étude de la similitude . . . XLVII
B.4.5 Analyse CFD . . . XLIX
B.5 Contrôle d’instabilités . . . LII
B.5.1 Méthode de contrôle d’instabilité . . . LII
B.5.2 Extension de la plage de fonctionnement . . . LIII
B.5.3 Analyse CFD en mode corotation . . . LVI
B.6 Conclusions . . . LVI
C List of acronyms LIX
List of figures
1.1 Schematic diagram of a centrifugal compressor . . . 2
1.2 Velocity triangles of the rotor at inlet (a) and outlet (b). . . 3
1.3 Diagram of a deviation of the flow velocity at the rotor outlet . . . 6
1.4 Logarithmic Spiral Blades where βb is constants for all radii [1] . . . 7
1.5 Performance map of centrifugal compressors (Source:wikipedia.org) . . . 11
1.6 Application of counter-rotating system on aircraft (a) Antonov AN-70 (Paris Air show 2013) and (b) P51 of North-Amerian (Source:wikipedia.org) 12 1.7 Schematic diagram of Sirocco fan test bench [2] . . . 15
1.8 Comparison of the performances between conventional and counter-rotating sirocco fan [2] . . . 15
1.9 Characteristics of seven best geometries: (a) total to total head rise; (b) total to total efficiency [3] . . . 16
1.10 Comparison between counter-rotating pump (left) and conventional pump (right) with the same working point and tip speed [4] . . . 17
1.11 Comparison of performance between counter-rotating and conventional compressor (a) counter-rotating and conventional configuration; (b) To-tal pressure rise characteristics (c) ToTo-tal to toTo-tal efficiency characteristics [5] . . . 18
2.1 Reference rotor designed by 3D Turbo software: (a) face view and (b) meridional view . . . 20
2.2 Schematic diagram of counter-rotating system . . . 21

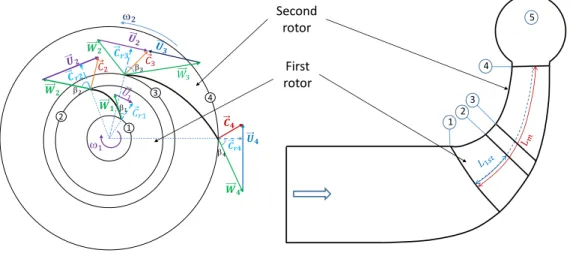

2.3 Velocity triangles diagram are used to design the counter-rotating sys-tem: (a) face view and (b) meridional view . . . 21
