distortions in video quality assessment
Alexandre Ninassi, Olivier Le Meur, Patrick Le Callet, Dominique Barba
To cite this version:
Alexandre Ninassi, Olivier Le Meur, Patrick Le Callet, Dominique Barba. Considering temporal
variations of spatial visual distortions in video quality assessment. IEEE Journal of Selected Topics
in Signal Processing, IEEE, 2009, 3 (2), pp.253-265. �10.1109/JSTSP.2009.2014806�. �hal-00345895�
Considering temporal variations of spatial visual
distortions in video quality assessment
*Alexandre Ninassi, Olivier Le Meur, Patrick Le Callet, and Dominique Barba
Abstract—The temporal distortions such as flickering, jerki-ness and mosquito noise play a fundamental part in video quality assessment. A temporal distortion is commonly defined as the temporal evolution, or fluctuation, of the spatial distortion on a particular area which corresponds to the image of a specific object in the scene. Perception of spatial distortions over time can be largely modified by their temporal changes, such as increase or decrease in the distortions, or as periodic changes in the distortions. In this work, we have designed a perceptual full reference video quality assessment metric by focusing on the temporal evolutions of the spatial distortions. As the perception of the temporal distortions is closely linked to the visual attention mechanisms, we have chosen to first evaluate the temporal dis-tortion at eye fixation level. In this short-term temporal pooling, the video sequence is divided into spatio-temporal segments in which the spatio-temporal distortions are evaluated, resulting in spatio-temporal distortion maps. Afterwards, the global quality score of the whole video sequence is obtained by the long-term temporal pooling in which the spatio-temporal maps are spatially and temporally pooled. Consistent improvement over objective existing video quality assessment methods is observed. Our validation has been realized with a dataset built from video sequences of various contents.
Index Terms—Video quality assessment, perceptual temporal distortion, temporal pooling, perceptual saturation, asymmetrical behavior, visual attention.
I. INTRODUCTION
The purpose of an objective image or video quality evalua-tion is to automatically assess the quality of images or video sequences in agreement with human quality judgments. Over the past few decades, image and video quality assessment has been extensively studied and many different objective criteria have been set. Video quality metric can be classified into Full Reference metrics (FR), Reduced Reference metrics (RR), and No Reference (NR). This paper is dedicated to the design of an FR video quality metric, for which the original
*A. Ninassi is both with Thomson Corporate Research, 1 Avenue Belle Fontaine, 35511 Cesson-Sevigne, France; and with the Institut de Recherche en Communications et Cybern´etique de Nantes (IRCCyN), Nantes, France (phone. +33(0)299273830; fax: +33(0)299273015; e-mail: alexan-dre.ninassi@thomson.net).
Olivier Le Meur is with Thomson Corporate Research, 1 Avenue Belle Fontaine, 35511 Cesson-Sevigne, France (phone. +33(0)299273654; fax: +33(0)299273015; e-mail: olivier.le-meur@thomson.net).
Patrick Le Callet is with the Institut de Recherche en Communications et Cybern´etique de Nantes (IRCCyN) UMR 6597 CNRS, Ecole Polytech-nique de l’Universite de Nantes, rue Christian Pauc, La Chantrerie, 44306 Nantes, France (phone. +33(0)240683047; fax: +33(0)240683232; e-mail: patrick.lecallet@univ-nantes.fr).
Dominique Barba is with the Institut de Recherche en Communications et Cybern´etique de Nantes (IRCCyN) UMR 6597 CNRS, Ecole Polytech-nique de l’Universite de Nantes, rue Christian Pauc, La Chantrerie, 44306 Nantes, France (phone. +33(0)240683022; fax: +33(0)240683232; e-mail: dominique.barba@univ-nantes.fr).
video and the distorted video are both required. One obvious way to implement video quality metrics is to apply a still image quality assessment metric on a frame-by-frame basis. The quality of each frame is evaluated independently, and the global quality of the video sequence can be obtained by a simple time average, or with a Minkowski summation of per-frame quality. However, a more sophisticated approach would model the temporal aspects of the Human Visual System (HVS) in the design of a quality metric. A number of methods have been proposed taking into account the main temporal features of the HVS [1]–[5].
In the scope of the error sensitivity-based approaches, Van den Branden Lambrecht et al. [2], [4] have extended the HVS models into the time dimension by modeling the temporal dimension of the Contrast Sensitivity Function (CSF), and by generating two visual streams tuned to different temporal aspects of the stimulus from the output of each spatial chan-nel. The two streams model the transient and the sustained temporal mechanisms of the HVS respectively, and play an important role in other metrics such as in [1], or in [5] where only the sustained temporal mechanism is taken into account. However, in these metrics, the temporal variations in the errors are not considered.
The approach of Wang et al. [6]–[8] was different. Rather than assessing the error in terms of visibility, Wang et al. used structural distortion [6] as an estimate of perceived visual distortion. This approach was extended to the temporal dimension by using motion information in a more [7] or less [8] sophisticated way. In [8], Wang et al. proposed a heuristic weighting model which takes into account the fact that the accuracy of the visual perception is reduced when the speed of the motion is high. In [7], the errors are weighted by the perceptual uncertainty based on the motion information, which is computed from a model of human visual speed perception [9]. As in other cases, these metrics do not take into account the temporal variations of the errors.
Another approach is the one from the National Telecommu-nications and Information Administration (NTIA) which has developed a Video Quality Model (VQM) [10] adopted by the ANSI as a U.S. national standard [11], and as international ITU Recommendations [12], [13]. The NTIA’s research fo-cused on developing technology independent parameters that model how people perceive video quality. These parameters were combined by using linear models. The General Model contains seven independent parameters. Four parameters are based on features extracted from spatial gradients of the Y luminance component. Two parameters are based on features extracted from the vector formed by the two (CB, CR)
chromi-nance components. One parameter is based on the product of features that measures contrast and motion, both extracted from the Y luminance component. This last parameter deals with the fact that perception of spatial impairments can be influenced by the amount of motion, but once again, the temporal variations of spatial impairments are not considered. The effects of the introduction of the temporal dimension in a quality assessment context can be addressed in a different way. A major consequence of the temporal dimension is the introduction of temporal effects in the distortions such as flickering, jerkiness and mosquito noise. Broadly speaking, a temporal distortion can be defined as the temporal evolution, or fluctuation, of the spatial distortion on a particular area which corresponds to the image of a specific object in the scene. Perception over time of spatial distortions can be largely modified (enhanced or attenuated) by their temporal changes. The time frequency and the speed of the spatial distortion variations, for instance, can considerably influence human perception. The temporal variations of the distortions have been studied in the scope of continuous quality evaluation [14], [15], where objective quality metrics try to mimic the temporally varying subjective quality of video sequences, as recorded by subjective continuous evaluation such as Single Stimulus Continuous Quality Evaluation (SSCQE). In [15], the existence of both a short-term and a long-term mechanisms in the temporal pooling of the distortions is introduced. The short-term mechanism is a smoothing step of per-frame quality scores, and the long-term mechanism is addressed by a recursive process on the smoothed per-frame quality scores. This process includes perceptual saturation and asymmetrical behavior.
In this work, we addressed the effects of the introduction of the temporal dimension by focusing on the temporal evolutions of the spatial distortions. Consequently, the question arises to know how a human observer perceives a temporal distortion. The perception of the temporal distortions is closely linked to the visual attention mechanisms. HVS is intrinsically a limited system. The visual inspection of the visual field is performed through many visual attention mechanisms. The eye movements can be mainly decomposed into three types [16]: saccades, fixations and smooth pursuits. Saccades are very rapid eye movements allowing humans to explore the visual field. Fixation is a residual movement of the eye when the gaze is fixed on a particular area of the visual field. Pursuit movement is the ability of the eyes to smoothly track the image of a moving object. Saccades allow us to mobilize the visual sensory resources (i.e. all parts of the HVS dedicated to processing the visual signal coming from the central part of the retina: the fovea) on the different parts of a scene. Between two saccade periods a fixation (or smooth pursuit) occurs. When a human observer assesses a video sequence, different spatio-temporal segments of the video sequence are successively assessed. These segments are spatially limited by the area of the sequence projected on both the fovea and the perifovea. Even if the perifovea plays a role in the perception of the temporal distortion, we have simplified the problem by using a foveal model. Motion information is essential to perform the temporal distortion evaluation of a
moving object, because the eye movement is very likely a pursuit in this situation. In that case, the evaluation of the temporal distortions must be done according to the apparent movement of this object. Furthermore, these segments are temporally limited by the fixation duration, or by the smooth pursuit duration. The perception of a temporal distortion is likely to happen during a fixation, or during a smooth pursuit. The fixation duration being shorter than the smooth pursuit duration, the temporal distortions must be evaluated first at eye fixation level. This short-term evaluation constitutes the first stage of our approach. This stage then is completed by a long-term evaluation in which the global quality of the whole sequence is evaluated from the quality perceived over each fixation.
In this paper, a full reference objective video quality as-sessment method is proposed. The spatio-temporal distortions are evaluated through a temporal analysis of spatial percep-tual distortion maps. The spatial perceppercep-tual distortion maps are computed for each frame with a wavelet-based quality assessment (WQA) metric developed in a previous study [17]. This paper is composed of the following sections. In section II, the new Video Quality Assessment metric (VQA) is presented. In order to investigate its efficiency, the VQA metric is compared with subjective ratings and two state-of-the-art metrics (VSSIM [8], VQM [10]) in section III. Finally conclusions are drawn.
II. VIDEO QUALITY ASSESSMENT METHOD
In the proposed video quality assessment system, the tem-poral evolution of the spatial distortions is locally evaluated, at short-term, through the mechanisms of the visual attention. The mechanisms of the visual attention indicate that the HVS integrates most of the visual information at the scale of the fixations [16]. Therefore, the spatio-temporal distortions are locally observed and measured for each possible fixation. It does not make sense to evaluate the distortion variations on a longer period than the fixation duration, because this does not happen in reality. The duration of 400 ms is chosen in accordance to the average duration of the visual fixation. This is the most simple and straightforward solution. A better solution, but much more complex, would be to adjust this value according to the local spatial and temporal properties. A rather simple content, such as flat areas, probably requires less attentional resources than a more complex area [18]. Moreover, a smooth pursuit movement can be longer than a fixation duration. The complexity as well as the validation of such a solution still remains an issue.
Since the variations of the spatial distortions are evaluated locally according to where humans gaze, a special attention must be paid to the moving objects. In the case of a moving object, the quality of its rendering cannot be assessed if it is not well stabilized on the fovea. Consequently, the evaluation of the temporal distortions must take into account the motion information, and the locality of evaluation must be motion compensated. These spatio-temporal segments of the sequence, evaluated by a human observer during fixations, can be roughly linked to spatio-temporal tubes (cf. section II-B1). These
structures contain the spatial distortion variations for each possible fixation.
The description of the proposed method is divided into three subsections. The general architecture of the proposed metric is presented in section II-A. Section II-B is devoted to the evaluation of the spatio-temporal distortions at eye fixation level. Finally, the evaluation of the temporal distortion on the whole video sequence is described in section II-C.
A. General architecture
The proposed video quality assessment system is composed of four steps as shown in Fig. 1. In the first step, numbered 1 in Fig. 1, for each frame t of the video sequence, a spatial perceptual distortion map V Et,x,y is computed. Each site (x, y) of this map encodes the degree of distortion that is perceived at the same site (x, y) between the original and the distorted frame. In this first step, there is no temporal consideration. In this work, the spatial perceptual distortion maps are obtained through the WQA metric developed in our previous work [17]. The WQA metric is a still image quality metric based on a multi-channel model of HVS. The HVS model of the low-level perception used in this metric includes subband decomposition, spatial frequency sensitivity, contrast and semi-local masking. The subband decomposition is based on a spatial frequency dependent wavelet transform. The spatial frequency sensitivity of the HVS is simulated by a wavelet CSF derived from Daly’s CSF [19]. Masking effects include both contrast and semi-local masking. Semi-local masking allows to consider the modification of the visi-bility threshold due to the semi-local complexity of an image. The objective quality scores computed with this metric are well correlated with subjective scores [17], [20]. Performance evaluation of WQA, PSNR and SSIM on three subjective experiments are presented in Table I. Table II describes the different subjective experiments. These results show that WQA performs well compared to PSNR and SSIM irrespective of the subjective experiments. The WQA distortion maps of a JPEG and a JPEG2000 compressed images are shown in Fig. 2. The major interest of using the WQA to compute the spatial perceptual distortion maps is its tradeoff between performance and complexity.
The second step, numbered 2 in Fig. 1, performs the motion estimation in which the local motion between two frames are estimated, as well as the dominant motion. This step is achieved with the use of a classical Hierarchical Motion Es-timator (HME). The motion estimation is block-based (block 8 × 8) and multiresolution. The estimated motion is expected to be as close as possible to the real apparent movement. Local motion and dominant motion are used to construct the temporal structure (temporal tube) in which the spatio-temporal distortions are evaluated. The local motion is used to track a moving object in the past, and the dominant motion is used to determine the temporal horizon on which the object can be tracked (appearance or disappearance of the object). Local motion (or motion vector) −→Vlocal(x, y) at each site (x, y) of a frame is produced by a hierarchical block matching. It is computed through a series of levels (different resolutions), each providing input for the next.
Dominant motion corresponds to the motion of the camera. In our work, dominant motion is defined by a parametric motion model −→VΘ(x, y). The motion model is a 2D affine motion model parametrized by Θ :
− → VΘ(x, y) = a1+ a2x + a3y a4+ a5x + a6y , (1)
where Θ = [a1, a2, a3, a4, a5, a6] represents the 2D affine parameters of the model. The six parameters of the 2D affine motion model can describe several types of motion such as translation, rotation and zoom. The affine parameters are computed from the local motion field −→Vlocal with a robust maximum likelihood-type estimator [21]. A recursive process, based on a weighted least mean square method, is used. Dominant motion parameters are recalculated until the results are stable or the number of recursive calls exceeds a maximum. Temporal evaluation of the quality is performed through steps 3 and 4. Step 3 realizes the short-term evaluation of the temporal distortions, in which the spatio-temporal perceptual distortion maps VEt,k,l are computed from the spatial dis-tortion maps and the motion information. For each frame of the video sequence, a temporal perceptual distortion map is computed. Each site (k, l) of this map encodes the degree of distortion that is perceived between the block (k, l) of the original frame and the block (k, l) of the distorted frame including temporal considerations (temporal distortions, etc.). The time scale of this evaluation is that of the human eye fixation [22] (around 400ms). This step is elaborated in section II-B. Step 4 performs the long-term evaluation of the temporal distortions in which the quality score for the whole video sequence is computed from the temporal perceptual distortion maps. Section II-C will describe this last part.
B. Spatio-temporal distortion evaluation at eye fixation level Spatio-temporal distortion evaluation is a complex problem. The purpose of this step is to perform the short-term eval-uation of the temporal distortions at eye fixation level. The video sequence must be divided into spatio-temporal segments corresponding to each possible fixation (or smooth pursuit). This means that a fixation can start at every time t, and every site (x, y) of the sequence. At eye fixation level, the temporal distortion evaluation depends both on the mean distortion level and on the temporal variations of distortions. The temporal variations of distortions have to be smoothed to obtain the mean distortion level that is perceptible during fixation. The insignificant temporal variations of distortions have to be discarded, and only the most perceptually important temporal variations of distortions have to be taken into account. Fig. 3 gives the main components involved in this evaluation. The first component (3.1) is dedicated to the creation of the spatio-temporal structures required to analyze the variation of the distortion during a fixation, i.e. the spatio-temporal tubes. Then, the distortions in the spatio-temporal tubes are calculated. The process is then separated into two parallel branches. The purpose of the first branch is to evaluate a mean distortion level during the visual fixation. The aim of the second branch is to evaluate the distortion variations occurring
Original Video Distorted Video Spatial Perceptual Distortion Evaluation (WQA) Motion Estimation
Short-term Temporal Pooling
(Spatio-temporal Perceptual Distortion Evaluation)
Long-term Temporal Pooling Video Quality Score Spatial Perceptual Distortion Maps Spatio-temporal Perceptual Distortion Maps Motion Vectors l k t VE,, y x t VE,, l k t MV,, Dominant Motion Parameters 1 2 3 4
Fig. 1. Block diagram of the proposed video quality assessment system. TABLE I
PERFORMANCE COMPARISON OFWQA, PSNRANDSSIMON THREE SUBJECTIVE EXPERIMENTS(IVC, OriginalToyamaANDNewToyama). COMPARISON PERFORMED BETWEENMOSAND PREDICTEDMOS (MOSP)IN TERMS OFCORRELATIONCOEFFICIENT(CC), SPEARMANRANKORDERCORRELATION
COEFFICIENT(SROCC)ANDROOTMEANSQUAREERROR(RMSE).
Metrics IVC (DSIS) NewToyama (ACR) OriginalToyama (ACR) CC SROCC RMSE CC SROCC RMSE CC SROCC RMSE MOSp(WQA) 0.923 0.921 0.48 0.937 0.941 0.38 0.919 0.923 0.514 MOSp(PSNR) 0.768 0.77 0.795 0.699 0.685 0.777 0.685 0.678 0.943 MOSp(SSIM) 0.832 0.844 0.691 0.823 0.826 0.618 0.814 0.82 0.754
TABLE II
DESCRIPTION OF THE THREE SUBJECTIVE EXPERIMENTS: IVC, OriginalToyamaANDNewToyama. Subjective
Distortions #Contents / Protocol Viewing Display Observers Experiments #Distorted images Conditions Devices (#) IVC DCT Coding, 10 / 120 DSIS ITU-R BT 500.10 CRT French DWT Coding, 6H (20) Blur
OriginalToyama DCT Coding, 14 / 168 ACR ITU-R BT 500.10 CRT Japanese
DWT Coding 4H (16)
NewToyama DCT Coding, 14 / 168 ACR ITU-R BT 500.10 LCD French
DWT Coding 4H (27)
during a fixation, and at which humans are the most sensitive. Next, these two branches are merged resulting in the spatio-temporal distortion maps.
1) Spatio-temporal tubes creation: In step 3.1, the Spatio-temporal Tubes are created. The aim of this step is to divide the video sequence into spatio-temporal segments corresponding to each possible fixation (or smooth pursuit). To create a spatio-temporal tube for a block (k,l,t) of a frame It, previous positions of the block are deduced by using backward local motion vectors. The local motion vectors are computed from the reference video sequence. The displacement of the block between two frames corresponds to an integer number of pixels. A spatio-temporal tube is then composed of n blocks, where n is the frame number of its temporal horizon, each block coming from a frame It−i (cf. Fig. 4). In other words, the past positions of the given block are motion compensated. The temporal horizon is limited to 400ms.
2) Distortions in spatio-temporal tubes: After the temporal tubes are created, the distortion values in a spatio-temporal tube are computed from the spatial distortion values
of each block in the past frames It−i. The distortion value of one block in the frame It−i is the average of the spatial distortion values of the corresponding block in the spatial distortion maps VEt−i,x,y (cf. Fig. 4).
3) Temporal filtering of the spatial distortion in the tube: Step 3.3 realizes the Temporal Filtering of Spatial Distortions. The goal of this step is to obtain a mean distortion level over the fixation duration. The large temporal variations of distortions are the most annoying for observers and their contribution should be more important than limited tempo-ral variations of distortions. The spatial distortions are then temporally filtered in each tube of a frame t. The temporal filter is a recursive filter. The characteristics of the filter are modified according to the importance of the temporal variations of distortions. The contribution of the large temporal variations of the distortions is increased compared to the contribution of the limited temporal variations of distortions. Time constant of this filter changes according to the value of the corresponding distortion gradient value (cf. step 3.5).
(a) (b) (c)
(d) (e) (f)

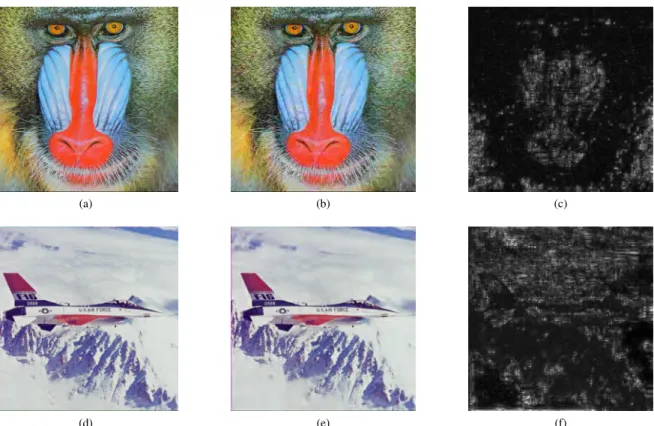

Fig. 2. Examples of WQA perceptual distortion maps: (a) and (d) are original Mandrill and Plane respectively; (b) is JPEG compressed Mandrill image; (c) is WQA perceptual distortion map of JPEG compressed Mandrill image; (e) is JPEG2000 compressed Plane image; (f) is WQA perceptual distortion map of JPEG2000 compressed Plane image. In (c) and (f), brightness indicates the magnitude of the perceptual distortion (black means no perceptual distortion).
It-4 It-5 It-6 It-n It-3 It-2 It-1 It Spatio-temporal tube ...
Average fixation duration
VEt-4
VEt-5
VEt-6
VEt-n VEt-3 VEt-2 VEt-1 VEt
Distortion values in a spatio-temporal tube ...
Fig. 4. Spatio-temporal tube illustration. The past trajectory of a block of the frame Itis reconstituted by using the past motion vectors of this block. VEt
Temporal Filtering of Spatial Distortions (α1, α2) Temporal Gradient Computation µ 0 if ||<µ α1, α2 Selection Temporal Filtering of Distortion Gradient Horizon Temporal t VE i tube l k ti,, ∈ tube l k t VE,, Fixation Pooling tube l k t E V ,, ( l k t VE,,
Spatio-temporal Distortion Maps Spatio-temporal Tubes
Creation Estimated Motion Vectors
Spatial Perceptual Distortion Maps l k t MV,, VEt,x,y 3.1 3.3 3.4 3.5 3.6 3.7 Dominant Motion Parameters
Distortions in
Spatio-temporal Tubes 3.2

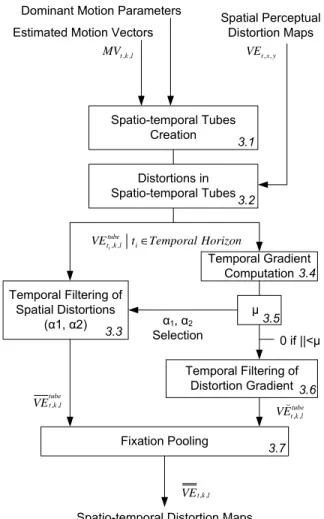

Fig. 3. Block diagram of the Spatio-temporal Perceptual Distortion Evalua-tion.
Time constant α1 = 200ms is used if the absolute value of the distortion gradient value is greater than µ, otherwise α2= 400ms is used. The output of this step is the map VE
tube t,k,l where each block (k, l) is the result of the temporal filtering of the spatial distortions in each tube finishing at frame t.
4) Visual temporal distortion measurement in a tube: The purpose of step 3.4 is to assess the temporal variation of dis-tortions. The temporal gradients of the spatial distortions in the tubes are computed in order to evaluate the most perceptually important temporal variations of distortions during fixations. In a tube, the distortion gradient ∇VEtube
ti,k,lat time tiis computed as follows: ∇VEtube ti,k,l = δVEtube ti,k,l δt δt = ti− ti−1 ti∈ T emporalHorizon , (2) where VEtube
ti,k,l is the distortion value at instant ti.
Low temporal variations of distortions which are probably not annoying must not be taken into account. The aim of step 3.5 is to delete them. In this step, a thresholding operation is performed on the absolute value of the gradient values. The purpose is to reduce the weight of the limited temporal variations of distortions (below µ) compared to large temporal variations of distortions (above µ). If the absolute value of the gradient is lower than µ the gradient value is set to 0. This
thresholding operation is also used to manage the temporal filtering of step 3.3, as described in the previous section.
The characteristics of temporal distortions, such as fre-quency and amplitude of the variations, impact the perception. The purpose of step 3.6 is to evaluate the perceptual impact of temporal distortions according to the characteristics of the temporal variations of distortions. In this step, the temporal filtering of distortion gradient is realized, in which the distor-tion gradients are temporally filtered in each tube of a frame t. This temporal filtering operation is achieved by counting the number of sign changes of the distortion gradients nStube t,k,l along the tube duration. The maximal distortion gradient M ax(∇VEtube
t,k,l) is computed, and used as maximal response of the filter. The temporal filtering result is obtained by:
V ˘Et,k,ltube= M ax(∇VEt,k,ltube) · f s(nSt,k,ltube) , (3) where f s is the response of the filter dependent on the number of sign changes: f s(n) = gs σs √ 2π· e −(n−µs)2 2σ2s , (4)
The response of the function f s(n) is given in Fig. 5. Function
0 2 4 6 8 10 12 14 16 18 0 0.2 0.4 0.6 0.8 1
Number of sign changes
fs
Fig. 5. Plot of the f s response. The function reaches its maximum around one sign change of the distortion gradients per fixation.
f s(n) gives more importance to temporal distortion at medium frequencies than at low or high frequencies. The rationale rests on the fact that HVS is most sensitive to temporal variations around 2cy/s, which correspond to about one sign change by fixation duration. The output of this step is the map V ˘Et,k,ltube where each block (k, l) is the result of the temporal filtering of the distortion gradient in each tube finishing at frame t.
The results coming from the two branches are then mixed together in step 3.7. This step performs the Fixation Pooling, in which the map VEt,k,l and the map V ˘Et,k,l are merged in order to obtain the final spatio-temporal distortion map VEt,k,l. If there is no temporal variation of distortions in the video sequence, the final map VEt,k,l is equal to the VEt,k,l map. But when temporal variations of distortions occur, the VEt,k,l map are consolidated by the temporal
variation evaluation of the map V ˘Et,k,l. This map is computed according to the following relation:
VEt,k,l= VEt,k,l· (1 + β · V ˘Et,k,l) , (5) where the value of parameter β is empirically deduced from experiments performed on synthetic sequences. These exper-iments aimed at obtaining relevant spatio-temporal distortion maps from synthetic sequences with synthetic distortions. This was achieved by setting the value β at 3.
Until now, the impact of the temporal distortions has been evaluated at the fixation level, resulting in the final spatio-temporal distortion maps VEt,k,l. However, a human observer scores a video sequence using the impairments he perceives during the whole sequence. This is the issue addressed in the next section.
C. Temporal distortion evaluation on the whole video se-quence
The long-term temporal pooling is the final stage that allows to construct the global objective quality score of a video sequence. The global objective quality score depends both on the mean distortion level over the whole sequence, and on the temporal variations of distortions over the whole sequence. The temporal variations of the distortions along a video sequence play an important part in the global score, and a mean distortion level on the whole sequence is not sufficient to evaluate the quality of the video. The evaluation process of a human observer could be summed up by the following sentence “quick to criticize and slow to forgive”. So, the overall temporal distortions evaluation of the whole video sequence is divided into two steps as shown in Fig. 6.
Spatial Pooling Temporal Pooling l k t VE,,
Spatio-temporal distortion maps
Global Perceptual Distortion Score Frame Perceptual Distortion Score t D D 4.1 4.2

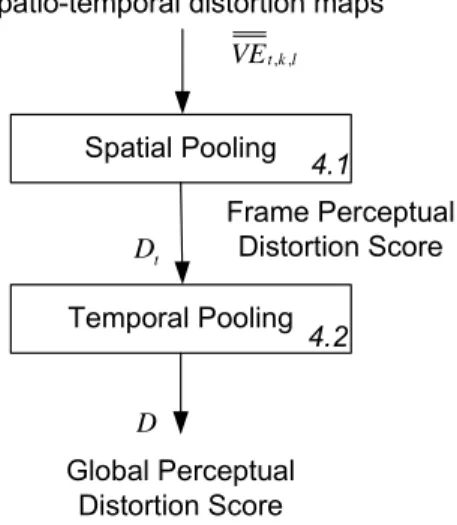

Fig. 6. Block diagram of the long-term temporal pooling.
1) Spatial pooling: The purpose of step 4.1 is to obtain a perceptual distortion score for each frame. A per-frame perceptual distortion score Dt is computed from the spatio-temporal distortion map of each frame through a classical Minkowski summation: Dt= 1 K · L K X k=1 L X l=1 VEt,k,l βs 1 βs , (6)
where K and L are the height and the width of the spatio-temporal distortion maps respectively (i.e. the vertical and the horizontal number of blocks in the original frame), and βs is the Minkowski exponent (βs= 2).
2) Temporal pooling: The global objective perceptual dis-tortion score, called D, depends both on the average of distortion level over the whole sequence, and on the temporal variations of distortions over the whole sequence. The per-ceptual distortion is increased by the temporal variations of distortions over the whole sequence. The proposed temporal pooling contains two main elements: perceptual saturation and asymmetric behavior. There are limitations in the viewer’s ability to observe any further changes in the frame qual-ity beyond certain thresholds, either toward better or worse quality [14]. This is what we call perceptual saturation. The asymmetrical behavior is the fact that humans are better able to remember unpleasant experiences than pleasant moments, and also experience great intensity of feelings from disliked situations compared to favorable situations [14].
The global perceptual distortion score D of a video is computed from every per-frame perceptual distortion scores Dt, as the sum (D = ¯D+∆D) of the time average of distortion
¯
D, and a term representing the variation of distortions along the sequence ∆D. But in order to limit the influence of too high distortion variations, D is computed with a saturation effect as follows: D = ¯ D + ∆D for ∆D< λ1· ¯D ¯ D + λ1· ¯D for ∆D≥ λ1· ¯D . (7)
The global distortion score D increases linearly with the tem-poral variation up to a saturation threshold value proportional to ¯D. The term ∆D favours the most important variations of distortions, and is computed as follows:
∆D= λ2· avgn %(abs(∇0Dt)) , (8) where ∇0Dt is the temporal gradient of the per-frame dis-tortion values Dt after the asymmetrical transformation of the gradient values, abs(X) is the absolute value of X, and avgn %(X) is the average of X values above the nth percentile of X. The asymmetrical transformation of the gradient values is computed as follows: ∇0Dt= λ3· ∇Dt for ∇Dt< 0 ∇Dt for ∇Dt≥ 0 λ3≤ 1, (9) where value of λ3 controls the asymmetrical behavior. If λ3 < 1, more weight is given to distortion increases than to distortion decreases.
Finally, the global quality score VQA is computed from per-ceptual distortion score D by using a psychometric function, as recommended by the Video Quality Expert Group (VQEG) [23]:
V QA = b1
0
1 + e−b20·(D−b30), (10)
where b10, b20 and b30 are the three parameters of the psycho-metric function. This psychopsycho-metric function is also used to compare VQA with state-of-the-art metrics (cf. section III-C).
III. EXPERIMENTATION
A. Video database
1) Participants: Thirty-six compensated participants were asked to assign each sequence with a quality score, indicating the extent to which the artifacts were more or less annoying. Prior to the test, subjects were screened for visual acuity by using a Monoyer optometric table. Besides, tests for normal color vision were performed using Ishihara chart. Therefore, all observers had normal or corrected to normal visual acuity (Monoyer test), and normal color perception (Ichihara test). All were inexperienced observers (not familiar with video processing) and naive to the experiment.
2) Method: The standardized method DSIS (Double Stimu-lus Impairment Scale) is used to determine the Mean Opinion Score (MOS). In DSIS, each observer views an unimpaired reference video sequence followed by its impaired version, each lasting for 8s. Experiments were conducted in normalized viewing conditions [24]. The scale used to score the distortion level is composed of five distortion grades:
• imperceptible (MOS=5); • not annoying (MOS=4); • slightly annoying (MOS=3); • annoying (MOS=2); • very annoying (MOS=1).
3) Stimuli: The video database is built from ten unimpaired video sequences of various contents as illustrated in Fig. 7. The spatial resolution of the video sequences is 720x480 with a frequency of 50Hz in a progressive scan mode. Each clip lasts 8s. They are displayed at a viewing distance of four times the height of the picture (66 cm). These video sequences have been degraded by using a H.264/AVC compression scheme at five different bitrates, resulting in fifty impaired video sequences. The five different bitrates were chosen in order to generate degradations all over the distortion scale (from imperceptible to very annoying).
The impairments produced by the encoding are evidently neither spatially nor temporally uniform, and therefore depend on each video content. Fig. 8a illustrates the temporal varia-tions of the quality through the scores given by the WQA metric (cf. Section II). This example indicates that the quality of the sequences varies from frame to frame, which is a clue on the presence of temporal distortions.
B. Video quality metrics tested
Several quality assessment metrics have been compared with subjective scores (MOS):
• The proposed video quality metric VQA (achromatic version),
• The usual PSNR (achromatic version). The PSNR global score is the temporal average of the per-frame PSNR. • VSSIM developed by Wang et al. [8]. We used all the
parameters described in [8], except for the normalization factor KM of the frame motion level which was adapted to our frame rate.
• VQM developed by NTIA [10]. Among the different models of VQM, we have chosen to use the General
Model which is considered to be the most accurate. The General Model is known as metric H in the Video Quality Experts Group (VQEG) Phase II Full Reference Television (FR-TV) tests [25].
In order to evaluate the different steps of the VQA metric, two alternative video perceptual distortion scores (VQA1, VQA2) are computed in addition to the global quality score.
The first intermediate video perceptual distortion score is a purely spatial quality score called VQA1. It is computed from the spatial distortion maps of the still image metric WQA [17] as follows: VQA1= 1 T T X t=1 dt, (11)
where T is the total number of frames and dtis a frame score computed as follows: dt= 1 K · L K X k=1 L X l=1 VEt,k,l βs 1 βs , (12)
where VEt,k,l are the spatial distortion maps computed with WQA [17], K and L are the height and the width of the spatial distortion maps, respectively, and βsis the Minkowski exponent.
In the second intermediate quality score called VQA2, the fixation temporal pooling is disabled. This means that the perceptual distortion score is computed from the long-term temporal pooling (cf. Eq. 7) where Dt is replaced by dt. Dt is the spatio-temporal per-frame distortion score (with the fixation temporal pooling), whereas dtis the purely spatial per-frame distortion score (without the fixation temporal pooling). A comparison between VQA2 and VQA allows to evaluate the improvement due to spatio-temporal distortion evaluation at eye fixation level (or short-term temporal pooling). On the other hand, a comparison between VQA1 and VQA allows to evaluate the improvement due to temporal pooling.
C. Results
As previously said, prior to evaluating the objective video quality measures, a psychometric function (Eq. 10) is used to transform the different objective quality scores in predicted MOS (MOSp), as recommended by VQEG [23]. The objective quality metrics are evaluated using three performance indica-tors recommended by VQEG [23]. The three performance indi-cators are the linear correlation coefficient (CC), the Spearman rank order correlation coefficient (SROCC) and the root-mean-square-error (RMSE).
The results, presented in Table III, are reported for the different metrics (VSSIM, VQM and VQA) and for the two intermediate quality scores (VQA1 and VQA2) of VQA. PSNR results are provided for information and could help readers to make their own opinion on the video dataset. Fig. 9 shows the scatter plots of the MOS versus MOSp on the whole database given by PSNR, VSSIM, VQM, VQA, and by the two intermediate video quality scores (VQA1 and VQA2) of VQA.
The results of the statistical tests are presented in Table IV. According to [26], the statistical test is an F-test based on the
(a) (b) (c)
(d) (e) (f)
Fig. 7. Examples of video sequences from the database. (a) MobCal, (b) InToTree, (c) ParkJoy, (d) DucksTakeOff, (e) CrowdRun, and (f) ParkRun.
0 50 100 150 200 250 300 350 400 0 0.05 0.1 0.15 0.2 0.25 0.3 0.35 0.4 0.45 0.5 Frame Number d t Hockey PrincessRun MobCal (a) 0 50 100 150 200 250 300 350 400 0 0.05 0.1 0.15 0.2 0.25 0.3 0.35 0.4 0.45 0.5 Frame Number D t Hockey PrincessRun MobCal (b)

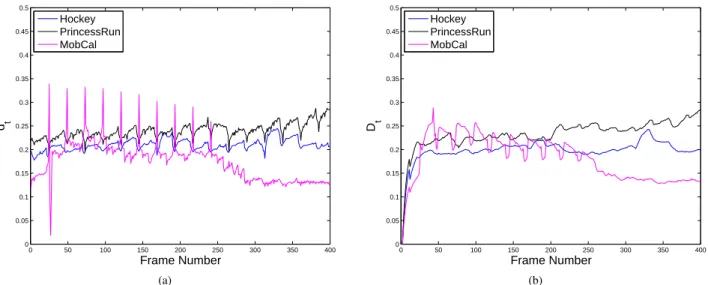

Fig. 8. Temporal evolution of the per-frame distortion score dt(a), and the per-frame distortion score Dt(b) for the three impaired sequences of the database:
Hockey (MOS=1.4), PrincessRun (MOS=2.6) and MobCal (MOS=1.3). The horizontal scale is the frame number, and the vertical scale is a distortion scale, which goes from 0 (best quality) to 0.5 (worst quality).
TABLE IV
STATISTICAL SIGNIFICANCE MATRIX BASED ON RESIDUALS BETWEENMOSANDMOSP. THE VALUES ARE THE PROBABILITY THAT THE NULL HYPOTHESIS OF EQUAL VARIANCES IS NOT REJECTED. IF THIS VALUE IS LESS THAN0.05THE TWO METRICS ARE SIGNICANTLY DIFFERENT WITH95%
CONFIDENCE. IF THIS VALUE IS LESS THAN0.10THE TWO METRICS ARE SIGNICANTLY DIFFERENT WITH90%CONFIDENCE. MOSp(PSNR) MOSp(VSSIM) MOSp(VQM) MOSp(VQA)
MOSp(PSNR) 1.0 0.09690 (p < 0.10) 0.00066 (p < 0.05) 0.00002 (p < 0.05) MOSp(VSSIM) 0.09690 (p < 0.10) 1.0 0.07259 (p < 0.10) 0.00610 (p < 0.05)
MOSp(VQM) 0.00066 (p < 0.05) 0.07259 (p < 0.10) 1.0 0.33157 MOSp(VQA) 0.00002 (p < 0.05) 0.00610 (p < 0.05) 0.33157 1.0
TABLE III
COMPARISON OF THE PERFORMANCES OF QUALITY METRICS ON THE ENTIRE DATASET IN TERMSCC, SROCCANDRMSE.
Metrics CC SROCC RMSE MOSp(PSNR) 0.516 0.523 0.982 MOSp(VQM) 0.854 0.898 0.597 MOSp(VSSIM) 0.738 0.758 0.773 MOSp(VQA) 0.892 0.903 0.519 MOSp(VQA1) 0.831 0.872 0.638 MOSp(VQA2) 0.834 0.863 0.633
difference between MOS and MOSp, i.e. the residuals between MOS and MOSp. To statistically compare two metrics m1and m2, the Null Hypothesis is defined as follows :
N ull Hypothesis ⇔ σM OS−M OSp(m1)= σM OS−M OSp(m2),
(13) where σM OS−M OSp(m1) and σM OS−M OSp(m2) are the
vari-ances of the residuals between MOS and MOSp.
The PSNR does not lead to a good prediction of quality as CC is only 0.516. This result gives a clue of how difficult the quality of the video sequences of the database is to evaluate. According to Table III and Table IV, PSNR is significantly worse than VQM and VQA with 95% confidence, and than VSSIM with 90% confidence.
The proposed method provides good results compared to the other approaches. VQA is statistically equivalent to VQM. However, with 95% confidence, VQA is statistically better than VSSIM, while VQM is not. VQM is statistically better than VSSIM with 90% confidence. It is important to mention that the parameters of the proposed method (VQA) were selected empirically, without any optimization process for the video database (λ1=1, λ2=10, λ3=0.25, and n=95).
The sample size is a critical point to perform statistical tests. In our experiment, only fifty impaired video sequences were scored. Therefore, the interpretation of the statistical tests must be done with care. This remark raises the global issue of finding numerous subjective video quality data. This international problem is mainly due to the content copyright issue and to the amount of work required to perform subjective experiments. However, the creation of a large public video database with subjective ratings would be helpful for the quality assessment community.
Fig. 9 shows that the prediction performances of the metrics depends on the video content and that the video content does not disturb the different metrics in the same way. For example, VQM underestimates the quality of the sequence Ducks, whereas VQA does not. VQA underestimates the quality of the sequences PrincessRun and Dance, and overestimates the quality of the sequence Hockey. A possible explanation lies in the fact that the spatial distortions are also overestimated, and underestimated respectively. Fig. 8 shows that the per-frame distortion scores (dtand Dt) of the sequence Hockey are lower than those of the sequence PrincessRun, whereas the MOS of the sequence Hockey are lower than the MOS of the sequence PrincessRun. In these sequences, the temporal variations of the distortions could not explain the prediction errors of the
quality. This shows that, in the proposed metric, the evaluation of temporal distortions is dependent on a good evaluation of the spatial distortion in the first step of the metric.
A comparison between the results from VQA1, VQA2 and VQA shows the positive contribution of the different steps of the proposed metric. The trend is a prediction improvement of the quality from the purely spatial quality score (VQA1) to the spatio-temporal quality score (VQA), even if they are statis-tically indistinguishable on this database. For example, ∆CC between these two configurations is +0.061. As expected, it shows that temporal distortions play an important part in video quality assessment. The prediction improvement of quality between VQA2and VQA shows the importance of the spatio-temporal distortion evaluation at eye fixation level (short-term temporal pooling). This step seems fundamental prior to the long-term temporal pooling. One possible explanation is the smoothing effect of the short-term temporal distortion varia-tions due to the fixation temporal pooling. This effect enables a better analysis of the long-term temporal distortion variations, by eliminating parasite temporal distortion variations. This smoothing effect is illustrated in Fig. 8, by comparing the temporal variation of the per-frame distortion scores dt (Fig. 8(a)) and Dt (Fig. 8(b)). The fixation temporal pooling does not only improve the prediction performance of the metric, but it also improves the relevance of distortions maps.
TABLE V
COMPARISON OF THE PERFORMANCES OFVQAFOR DIFFERENT VALUES OF THE PARAMETERSλ3ANDn,IN TERMSCC, SROCCANDRMSE. THE
PARAMETERSλ1ANDλ2ARE CHOSEN TO OPTIMIZE PREDICTION PERFORMANCES. RESULTS USING THE ENTIRE DATASET.
λ3 nth percentile CC SROCC RMSE
0 0 0.85 0.874 0.605 0 80 0.879 0.892 0.547 0 85 0.885 0.893 0.535 0 90 0.892 0.901 0.518 0 95 0.895 0.912 0.512 0.25 0 0.851 0.874 0.601 0.25 80 0.88 0.892 0.545 0.25 85 0.885 0.893 0.533 0.25 90 0.892 0.901 0.518 0.25 95 0.895 0.912 0.511 0.5 0 0.853 0.875 0.599 0.5 80 0.877 0.89 0.551 0.5 85 0.883 0.895 0.539 0.5 90 0.89 0.901 0.522 0.5 95 0.894 0.912 0.513 0.75 0 0.854 0.878 0.597 0.75 80 0.872 0.89 0.561 0.75 85 0.876 0.893 0.552 0.75 90 0.883 0.896 0.538 0.75 95 0.892 0.91 0.519 1 0 0.854 0.877 0.596 1 80 0.867 0.883 0.571 1 85 0.87 0.886 0.565 1 90 0.875 0.89 0.554 1 95 0.887 0.908 0.53
0 1 2 3 4 5 6 0 1 2 3 4 5 6 MOSp(PSNR) MOS PrincessRun Dance CrowRun Ducks IntoTree ParkJoy Mobcal ParkRun Foot Hockey (a) 0 1 2 3 4 5 6 0 1 2 3 4 5 6 MOSp(VQA 1) MOS PrincessRun Dance CrowRun Ducks IntoTree ParkJoy Mobcal ParkRun Foot Hockey (b) 0 1 2 3 4 5 6 0 1 2 3 4 5 6 MOSp(VSSIM) MOS PrincessRun Dance CrowRun Ducks IntoTree ParkJoy Mobcal ParkRun Foot Hockey (c) 0 1 2 3 4 5 6 0 1 2 3 4 5 6 MOSp(VQA 2) MOS PrincessRun Dance CrowRun Ducks IntoTree ParkJoy Mobcal ParkRun Foot Hockey (d) 0 1 2 3 4 5 6 0 1 2 3 4 5 6 MOSp(VQM) MOS PrincessRun Dance CrowRun Ducks IntoTree ParkJoy Mobcal ParkRun Foot Hockey (e) 0 1 2 3 4 5 6 0 1 2 3 4 5 6 MOSp(VQA) MOS PrincessRun Dance CrowRun Ducks IntoTree ParkJoy Mobcal ParkRun Foot Hockey (f)

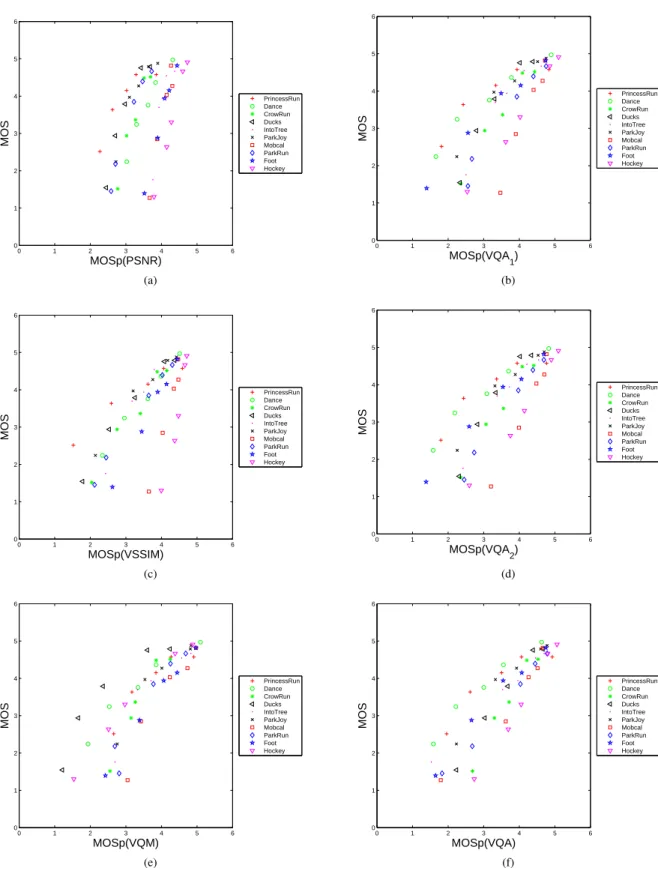

Fig. 9. Scatter plot comparison of different video quality assessment metrics on our video database. Vertical and horizontal axes are for subjective (MOS) and objective measurement (MOSp), respectively. Each sample point represents one test video sequence. The same marker type is used for each impaired video obtained from the same original video: (a) PSNR, (c) VSSIM, (e) VQM, (b) VQA1, (d) VQA2, and (f) VQA.
Results, presented in Table V, are reported for VQA and for different values of the parameters λ3 and n. In this experiment, values of parameters λ1 and λ2 are selected to optimize prediction performances. The parameter λ3 modifies the asymmetrical behavior of the long-term temporal pooling. The prediction modification of quality as a function of λ3 shows that the long-term temporal pooling with symmetrical behavior (λ3=1) leads to lower results than the long-term temporal pooling with asymmetrical behavior. It is interesting to note that, to reach the best prediction performances, asym-metrical behavior must give, at least, twice as much weight to the distortion increases as to the distortion decreases. Besides, the choice of the empirical value of λ3(λ3=0.25) seems to be a good option.
The parameter n modifies the weight given to the maximal temporal gradients of per-frame distortion values. The worst results are obtained when all temporal gradients of per-frame distortion values are considered (n=0). The prediction modi-fication of the quality as a function of n shows that long-term temporal pooling takes advantage of using maximal temporal gradients of per-frame distortion values. Even if the best prediction performances are obtained with n=95, the results are robust to high values of n. It is interesting to note that n=95 means that the most important distortion variations occurring 5 per cent of the time are the most important in terms of prediction performance. This reinforces the fact that distortion variations with high dynamic range must be considered.
Results are also reported for VQA2 (without the fixation temporal pooling), presented in Table VI, and for different values of parameters λ3 and n. In this experiment, values of parameters λ1and λ2 are selected to optimize prediction per-formance. The results show that long-term temporal pooling failed to improve the prediction performance when the fixation pooling is disabled. This observation is valid irrespective of the values of the parameters λ1, λ2, λ3, and n. Consequently, the fundamental nature of the fixation pooling step is enhanced by these results.
IV. CONCLUSION
This paper described a full reference video quality assess-ment metric. This metric focuses on the temporal variations of the spatial distortions. The temporal variations of the spatial distortions are evaluated both at eye fixation level, and on the whole video sequence. These two kinds of temporal variations are assimilated into a short-term temporal pooling and a long-term temporal pooling respectively.
Consistent improvement over existing video quality assess-ment methods is observed. CC between VQA and subjective scores is 0.892, and the prediction improvements in term of CC are +73%, +21% and +4% compared to PSNR, VSSIM and VQM, respectively. Results also show the positive contribution of the different steps of the proposed metric. In particular, this metric shows that the short-term temporal pooling is essential prior to the long-term temporal pooling, as it improves the prediction performances of VQA. An interesting point of the proposed method is that the spatial distortion maps could be considered as inputs. In this work, we used a still image
TABLE VI
COMPARISON OF THE PERFORMANCES OFVQA2FOR DIFFERENT VALUES OF THE PARAMETERSλ3ANDn,IN TERMSCC, SROCCANDRMSE. THE
PARAMETERSλ1ANDλ2ARE CHOSEN TO OPTIMIZE PREDICTION PERFORMANCES. RESULTS USING THE ENTIRE DATASET.
λ3 nth percentile CC SROCC RMSE
0 0 0.831 0.872 0.638 0 80 0.831 0.872 0.638 0 85 0.831 0.872 0.638 0 90 0.831 0.872 0.638 0 95 0.832 0.869 0.636 0.25 0 0.831 0.872 0.638 0.25 80 0.831 0.872 0.638 0.25 85 0.831 0.868 0.638 0.25 90 0.832 0.867 0.636 0.25 95 0.834 0.863 0.633 0.5 0 0.831 0.872 0.638 0.5 80 0.831 0.868 0.638 0.5 85 0.832 0.866 0.636 0.5 90 0.833 0.87 0.634 0.5 95 0.839 0.866 0.624 0.75 0 0.831 0.872 0.638 0.75 80 0.832 0.868 0.636 0.75 85 0.833 0.867 0.635 0.75 90 0.834 0.869 0.633 0.75 95 0.846 0.869 0.611 1 0 0.831 0.872 0.638 1 80 0.832 0.867 0.636 1 85 0.833 0.87 0.634 1 90 0.835 0.869 0.632 1 95 0.85 0.865 0.605
quality metric WQA developed in a previous work to compute the spatial perceptual distortion map, but we can imagine to replace it by any still image quality metric that computes a spatial perceptual distortion map. The performance compari-son of the proposed method, using different models to obtain the spatial perceptual distortion maps, could be an interesting investigation.
Further work should include the development of a more sophisticated way to realize the long-term temporal pooling. In the proposed metric, we believe that relevant information is lost in the spatial pooling step, and that a more sophisticated long-term temporal pooling should resolve this issue.
REFERENCES
[1] S. Winkler, “A perceputal distortion metric for digital color video,” Proc. SPIE Human Vision and Electronic Imaging IV, vol. 3644, pp. 175–184, 1999.
[2] C. J. van den Branden Lambrecht, “A working spatio-temporal model of the human visual system for image restoration and quality assess-ment applications,” Proc. IEEE International Conference on Acoustics, Speech, and Signal Processing, vol. 4, pp. 2291–2294, 1996. [3] A. B. Watson, J. Hu, and J. F. I. McGowan, “DVQ: A digital video
quality metric based on human vision,” Journal of Electronic Imaging, vol. 10, no. 1, pp. 20–29, 2001.
[4] C. J. van den Branden Lambrecht, D. M. Costantini, G. L. Sicuranza, and M. Kunt, “Quality assessment of motion rendition in video coding,” IEEE Trans. on Circuits and Systems for Video Tech., vol. 9, no. 5, pp. 766–782, 1999.
[5] M. Masry, S. S. Hemami, and S. Yegnaswamy, “A scalable wavelet-based video distortion metric and applications,” IEEE Trans. on circuits and systems for video technology, vol. 16, no. 3, pp. 260–273, 2006. [6] Z. Wang, A. C. Bovik, H. R. Sheikh, and E. P. Simoncelli, “Image
quality assessment: From error visibility to structural similarity,” IEEE Trans. on Image Processing, vol. 13, no. 4, pp. 600–612, 2004. [7] Z. Wang and Q. Li, “Video quality assessment using a statistical model
of human visual speed perception,” Journal of the Optical Society of America A, vol. 24, no. 12, pp. B61–B69, 2007.
[8] Z. Wang, L. Lu, and A. C. Bovik, “Video quality assessment based on structural distortion measurement,” Signal Processing: Image Commu-nication, special issue on objective video quality metrics, vol. 19, no. 2, pp. 121–132, 2004.
[9] A. A. Stocker and E. P. Simoncelli, “Noise characteristics and prior expectations in human visual speed perception,” Nature Neuroscience, vol. 9, no. 4, pp. 578–585, 2006.
[10] M. Pinson and S. Wolf, “A new standardized method for objectively measuring video quality,” IEEE Trans. on Broadcasting, vol. 50, no. 3, pp. 312–322, Sept. 2004.
[11] ANSI T1.801.03 2003, “American national standard for telecommu-nications - digital transport of one-way video signals - parameters for objective performance assessment,” American National Standard Institute.
[12] IUT-T Recommendation J.144, “Objective perceptual video quality measurement techniques for digital cable television in the presence of a full reference,” Recommendations of the ITU, Telecommunication Standardization Sector.
[13] IUT-R Recommendation BT.1683, “Objective perceptual video quality measurement techniques for standard definition digital broadcast televi-sion in the presence of a full reference,” Recommendations of the ITU, Radiocommunication Sector.
[14] K. T. Tan, M. Ghanbari, and D. E. Pearson, “An objective measurement tool for mpeg video quality,” Signal Processing: Special issue on image and video quality metrics, vol. 70, no. 3, pp. 279–294, 1998. [15] M. Masry and S. Hemami, “A metric for continuous quality evaluation
of compressed video with severe distortions,” Signal processing: Image communication, vol. 19, no. 2, pp. 133–146, February 2004.
[16] J. E. Hoffman, “Visual attention and eye movements,” In H. Pashler, Ed. Hove, UK: Psychology Press, 1998, pp. 119–154.
[17] A. Ninassi, O. Le Meur, P. Le Callet, and D. Barba, “On the performance of human visual system based image quality assessment metric using wavelet domain,” Proc. SPIE Human Vision and Electronic Imaging XIII, vol. 6806, 2008.
[18] J. M. Wolfe, “Visual search,” In H. Pashler, Ed. East Sussex, UK: Psychology Press, 1998, pp. 13–74.
[19] S. Daly, “The visible differences predictor : an algorithm for the assess-ment of image fidelity,” Proc. SPIE Human Vision, Visual Processing, and Digital Display III, vol. 1666, pp. 2–15, 1992.
[20] A. Ninassi, O. Le Meur, P. Le Callet, and D. Barba, “Which semi-local visual masking model for wavelet based image quality metric?” Proc. IEEE International Conference on Image Processing (to be appeared in), 2008.
[21] J. Odobez and P. Bouthemy, “Robust multiresolution estimation of parametric motion models,” Journal of Visual Communication and Image Representation, vol. 6, no. 4, pp. 348–365, 1995.
[22] O. Le Meur, P. Le Callet, and D. Barba, “Predicting visual fixations on video based on low-level visual features,” Vision Research, vol. 47, no. 19, pp. 2483–2498, 2007.
[23] Video Quality Experts Group (VQEG), “Final report from the video quality experts group on the validation of objective models of video quality assessment,” 2000, http://www.vqeg.org/.
[24] ITU-R Recommendation BT.500-10, “Methodology for the subjective assessment of the quality of television pictures,” Recommendations of the ITU, Radiocommunication Sector.
[25] Video Quality Experts Group (VQEG), “Final report from the video quality experts group on the validation of objective models of video quality assessment, phase II,” 2003, http://www.vqeg.org/.
[26] H. Sheikh, M. Sabir, and A. Bovik, “A statistical evaluation of recent full reference image quality assessment algorithms,” IEEE Trans. on Image Processing, vol. 15, no. 11, pp. 3440–3451, 2006.
