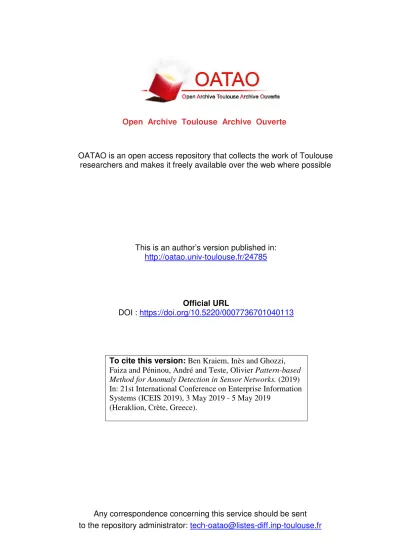

Open Archive Toulouse Archive Ouverte

OATAO is an open access repository that collects the work of Toulouse

researchers and makes it freely available over the web where possible

To cite this version: Ben Kraiem, Inès and Ghozzi,

Faiza and Péninou, André and Teste, Olivier Pattern-based

Method for Anomaly Detection in Sensor Networks.

(2019)

In: 21st International Conference on Enterprise Information

Systems (ICEIS 2019), 3 May 2019 - 5 May 2019

Pattern-based Method for Anomaly Detection in Sensor Networks

Ines Ben Kraiem

1

, Faiza Ghozzi

2

, Andre Peninou

1

and Olivier Teste

1

1_{Universit´e de Toulouse, UT2J, IRIT, Toulouse, France} 2_{Universit´e de Sfax, ISIMS, MIRACL, Sfax, Tunisia}

Keywords: Sensor Networks, Anomaly Detection, Pattern-based Method.

Abstract: The detection of anomalies in real fluid distribution applications is a difficult task, especially, when we seek to accurately detect different types of anomalies and possible sensor failures. Resolving this problem is in-creasingly important in building management and supervision applications for analysis and supervision. In this paper we introduce CoRP ”Composition of Remarkable Points” a configurable approach based on pattern modelling, for the simultaneous detection of multiple anomalies. CoRP evaluates a set of patterns that are defined by users, in order to tag the remarkable points using labels, then detects among them the anomalies by composition of labels. By comparing with literature algorithms, our approach appears more robust and accurate to detect all types of anomalies observed in real deployments. Our experiments are based on real world data and data from the literature.

anomaly detection, habitat monitoring, online trans-actions and fraud detection etc ((Hodge and Austin, 2004), (Agrawal and Agrawal, 2015)). Several tech-niques have been proposed in the literature and cat-egorized according to the fields of application or the types of anomalies to be detected (Chandola et al., 2009). Nevertheless, these techniques are unable to always detect all types of anomalies simultaneously and thus real applications are forced to use several methods to accurately detect all existing anomalies. This paper is placed in the context of real applications with anomalies specific to the business (fluid manage-ment on the Rangueil-Toulouse campus). The prob-lem is to find a method to detect multiple anomalies of different types (special event, sensor malfunctions) observed during actual deployments while maximiz-ing the number of anomalies detected and minimizmaximiz-ing errors. In this context, we deal with univariate time series.

The difficulty of having a robust technique to de-tect all the anomalies leads us to define a new con-figurable method named CoRP ”Composition of re-markable points”. This method allows, firstly, to de-tect points that appear remarkable in the time series by evaluating patterns and, secondly, to create re-markable point compositions used to identify multiple anomalies.

The remainder of this paper is structured as fol-lows. In section 2, we provide some techniques and algorithms mentioned in the literature about anomaly

1

INTRODUCTION

Sensor
networks
play
an
important
role
in
the
super-vision
and
exploration
of
fluid
distribution
networks
(energy,
water,
heating,
.
.
.
)
at
campus
or
city
scale.
The
operation
is
based
on
the
data
collected
by
the
sensors.
These
data
include
anomalies
that
affect
the
supervision
(false
alarms,
billing
errors,.
.
.
).

For
instance,
figure
1
i llustrate
a
s udden
change
(represented
by
a
cross),
in
sensor
measurements,
that
generates
a
permanent
level
shift
due
to
a
hardware
problem
(damaged
sensors,
sensor
change,
.
.
.
).
The
triangles
in
the
figure
1
includes
several
peaks
repre-senting
reading
defects
related
to
an
unforeseen
event
(breakdown,
break,
.
.
.
).
Finally,
the
rectangle
rep-resents
a
constant
offset
in
the
measurements
due
to
a
communication
problem
between
the
supervision
devices.
In
this
case,
the
sensor
measurements
may
differ
from
their
expected
values
and
thus
become
anomalies
making
the
exploration
task
more
difficult
and
complex.
Therefore,
all
these
scenarios
must
be
considered
and
must
be
accurately
detected.

In
this
context,
anomaly
detection
appears
to
iden-tify
and
to
find
values
in
data
that
do
not
conform
to
expected
behavior
(Chandola
et
al.,
2009).
Beyond
the
supervision
of
sensor
networks,
there
is
a
wide
range
of
applications
for
which
it
is
essential
to
de- tect
anomalies
to
facilitate
data
analysis
including
in-trusion
detection,
industrial
damage
detection,
processing
and
medical
anomaly
detection,
textual

Figure 1: Example of defects in sensor measurements.

detection in time series. Then, in section 3, we de-scribe our pattern-based method for anomaly detec-tion. In section 4, we detail the experimental setup, the case study with the real world data sets and a benchmark data sets. In section 5 we conclude with the perspectives and ideas for further research.

2

STATE OF THE ART

Existing Surveys on Anomaly Detection. Most of the existing research relates to either several applica-tion domains or a single field of applicaapplica-tion, as in the case of these reviews ((Chandola et al., 2009), (Hodge and Austin, 2004), (Sreevidya et al., 2014), (Agrawal and Agrawal, 2015)). Among these applications we can mention, intrusion detection, industrial damage detection, image processing and medical anomaly de-tection, textual anomaly dede-tection, habitat monitor-ing, online transactions and fraud detection. The au-thors discussed several anomaly detection techniques according to the field of application. Typical exam-ples include approaches based on clustering, classifi-cation, statistics, nearest neighbors, regression, spec-tral decomposition, and information theory. These techniques can detect three types of anomaly: point, contextual and collective anomalies.

Anomaly Detection on Time Series. Some authors have chosen techniques that are appropriate for de-tecting particular types of anomalies observed in real deployments (Sharma et al., 2010). Thus, these au-thors have explored anomaly detection techniques that are appropriate for detecting anomaly types (short, noise, and constant faults). They explore four qualitatively different classes of fault detection meth-ods namely: rule-based methmeth-ods (short, noise, con-stant rules), least-squares estimation-based method, learning-based methods (HMM) and Time-series-analysis-based methods (ARIMA). Although each of these methods detects specific types of anomalies, they still generate errors, especially in a context of

multiple
anomalies.
For
this
reason,
the
authors
used
hybrid
methods,
Hybrid(U)
and
Hybrid(I),
to
improve
their
results
and
reduce
respectively
the
number
of
false
negative
and
false
positive.
Hybrid(U)
declares
a
point
as
an
anomaly
if
at
least
one
of
the
methods
ex- plored
identified
that
point
as
an
anomaly,
while
Hy-brid(I)
declares
a
point
as
an
anomaly
when
all
the
explored
methods
identified
this
point
as
an
anomaly.

(Yao
et
al.,
2010)
propose
an
approach
to
on-line
anomaly
detection
in
measurements
collected
by
sensor
systems.
They
propose
an
algorithm
termed
Segmented
Sequence
Analysis
(SSA)
that
consists
on
comparing
the
collected
measurements
against
a
ref-erence
time
series.
SSA
leverages
temporal
and
spa-tial
correlations
in
sensor
measurements.
This
method
also
fails
to
accurately
detect
all
anomalies.
Thus,
the
authors
proposed
an
hybrid
approach
to
improve
the
results.
Typically,
a
combination
of
SSA
with
the
rule-based
method
(short
and
constant
rules).
Indeed,
they
start
by
applying
the
rule-based
method
to
detect
short-term
anomalies,
then
they
apply
SSA
to
detect
the
remaining
anomalies.

Other
methods
for
anomaly
detection
in
an
uni-variate
data-set
are
using
an
approximately
normal
distribution
of
data
such
that
generalized
ESD
test
(Extreme
Studentized
Deviate)
(Rosner,
1983)
and
Change
Point
(Basseville
et
al.,
1993)
(Aminikhang-hahi
and
Cook,
2017).
The
limitation
of
ESD
is
that
it
requires
to
specify
an
upper
bound
for
the
suspected
number
of
outliers.
This
is
not
possible
on
all
ap-plications
and
is
impossible
for
online
anomaly
de-tection.
Change
Point
detects
distribution
changes
(e.g.,
mean,
variance,
covariances)
in
sensor
mea-surements.
This
method
detects
each
change
as
an
anomaly
meanwhile
changes
may
exist
in
the
time
se-ries
that
do
not
necessarily
represent
an
anomaly
and
vice
versa. Other
methods
are
based
on
the
nearest
neighbor
anomaly
detection
technique
and
can
be
grouped
into
two
categories
(Chandola
et
al.,
2009):
(1)
techniques
that
use
the
distance
of
a
data
instance
to
its
kth
near-est
neighbor
as
the
anomaly
score
(Upadhyaya
and
Singh,
2012).
(2)
techniques
that
compute
the
relative
density
of
each
data
instance
to
compute
its
anomaly
score
for
example
LOF
(Local
Outlier
Factor)
algo-rithm
(Breunig
et
al.,
2000).
One
of
the
drawbacks
of
Nearest
Neighbor
Based
Techniques
is,
that
it
fails
to
label
data
correctly
if
the
data
has
normal
instances
that
do
not
have
enough
close
neighbors
or
if
the
data
has
anomalies
that
have
enough
close
neighbors
(Chandola
et
al.,
2009).

While
each
of
these
methods
has
been
designed
for
anomaly
detection,
we
believe
that
they
do
not
satisfy
all
the
desirable
properties
described
above

including the detection of all types of anomalies si-multaneously observed in actual deployments with the less error possible. Additionally, several methods among the mentioned methods require pre-treatment or post-treatment with hybrid methods to improve their results. To evaluate the performance of these methods, we have selected algorithms that belong to different techniques and are close to detect the types of anomalies we seek to detect.

We will present these algorithms in the following paragraph and illustrate a comparison between these methods on our case study in the section 4.

Exploration of Existing Detection Methods. In our study, we explored five methods that belong to four different techniques to detect the types of anoma-lies observed in our application.

• The rule-based methods that belong to the classi-fication technique and that can be extremely pre-cise, but their accuracy depends essentially on the choice of parameters; This method is based on the exploitation of domain knowledge to velop heuristics to detect and identify sensor de-fects (Sharma et al., 2010). In our exploration, we used two rules to detect short (abnormal change) and constant anomalies (no variation):

Short Rule: We process the time series by com-paring two successive observations each time. An anomaly is detected if the difference between them is greater than a threshold. To automatically determine the threshold, we used the histogram-based approach (Ramanathan et al., 2006). We have plotted the histogram of the sensor reading change between two successive samples for the short rule and then select one of the histogram modes as a threshold.

Constant Rule: We calculate the standard devia-tion for a set of successive observadevia-tions. If this value is equal to zero, the set is declared as an anomaly.

• Density-based method that consists in comparing the density around a point with respect to the den-sity of its local neighbors. It can detect local and global anomalies (abnormal change). (Breunig et al., 2000) proposed the LOF algorithm. In this method, the anomaly scores are measured using a local outlier factor, which is the ratio of the lo-cal density around this point to the lolo-cal density around its nearest neighbor. The data point whose LOF value is high is declared anomaly. The effec-tiveness of LOF is strongly depends on the choice of the number of closest neighbors.

• Statistics-based method: First, we used ESD

method for the automatic detection of anoma-lies and more precisely the abnormal change such as positive or negative peaks. Secondly, we used the point change method to detect the level shift. AnomalyDetection is an open source R package for detecting anomalies in the presence of seasonality and an underlying trend. This package is based on the SH-ESD (Seasonal Hy-brid ESD) algorithm, developed by (Hochenbaum et al., 2017), which first uses the STL time series decomposition (Seasonal and Trend decomposi-tion using Loess) developed by (Cleveland et al., 1990) to divide the time series signal into three parts: seasonal, trend and residue. Secondly, it ap-plies residual anomaly detection techniques such as ESD (Rosner, 1983) using statistical metrics. For point change detection, this is the name given to the problem of estimating the point at which the statistical properties of a sequence of observa-tions change (Aminikhanghahi and Cook, 2017). We used the ChangePoint package, in R, which implements various point change methods in the (single and multiple) data to detect either mean or variance breaks or breaks in both the average and in the variance. ESD and point change is consid-ered light. statistical techniques in terms of calcu-lation.

• Method based on time series analysis: The prin-ciple of this approach is to use temporal correla-tions to model and predict time series values. In this article, we used the ARIMA model (AutoRe-gressive Intergrated Moving Average) to create a prediction model according to the approach de-scribed by (Chen and Liu, 1993). ARIMA is ef-ficient in anomaly detection with seasonal data. Thus, this method can detect different types of anomalies such as Additive Outlier (AO), Inno-vation Outlier (IO), Level Shift (LS), Temporary change (TC) and Seasonal Additive Outlier (SA). What interests us among these types are Additive Outlier (AO) which represent in our case an ab-normal change and Level Shift (LS) and Tempo-rary change (TC).

There are open source implementations for algo-rithms like LOF, ARIMA, S-H-ESD and Change Point and we have implemented other approaches (Short rule and Constant rule) depending on available sources.

Table 1 represents a summary of the methods we have explored to detect defects found in actual de-ployments and presented in figure 1. So, we used Short rule, ARIMA, LOF and S-H-ESD algorithms to detect positive and negative peak. Then, we explored Constant rule to detect constant anomalies and finally

Table 1: Positioning detection methods against anomalies to be detected.

Type of anomalies Detection methods

Positive and Negative peak Short Rule, ARIMA, LOF, S-H-ESD

Constant Constant Rule

Level Shift ARIMA, Change Point

we used ARIMA and Change Point to detect Level Shift also known in literature by Concept Drift. In this paper we will remain on the terminology of Level Shift.

3

METHODOLOGY

Several anomalies have been observed by the ana-lysts in real deployments and they occur as a result of communication problems between supervision de-vices, failures, stops of sensors or changes of sen-sors. Sensor networks are monitored by the experts, by observing the curves, in order to detect points that seem remarkable and that illustrate unusual behaviors in the real context. These remarkable points are un-usual variations between successive points of a time series and which are the markers (or indices) of pos-sible anomalies. In this context, we have created our configurable approach, called CoRP (”Composition of Remarkable Points”). It is based on patterns to detect remarkable points and on compositions of re-markable points to identify anomalies.

3.1

Notations

Definition 1. A time series is composed of successive observations or points collected sequentially in time at a regular interval. These observations represent the measures that are associated with a timestamp indi-cating the time of its collection.

Let Yi= {y1,y2,y3....} be a time series

represent-ing the sequence of collected sensor measurements yi ∈ R for each observation i ∈ N.

Definition 2. A point is a measure composed of a value and a time stamp. In this paper, we note a mea-sure yj = (tj,vj) such as tj is the timestamp of yj (called t(yj)) and vjis the value of yj(called v(yj)).

3.2

Description of CoRP Method

Based on the experience of experts (detection of re-markable points and identification of anomalies), the CoRP algorithm is built in two phases. The first one is dedicated to detect the points considered as remark-able in the time series. The second phase is

dedi-cated to identify anomalies by using compositions of remarkable points.

3.2.1 Detection of Remarkable Points

The detection of remarkable points is made from the detection patterns.

Definition 3. A pattern is defined by a triple (l, σa, σ_{b) where l is a label that characterizes the pattern.} σ_aand σbare two thresholds used to decide if a point is remarkable (or not). A pattern is applied to three successive points of a time series. We denote three successive points yj−1,yj,yj+1 of a time series Y as

yminus, y, yplus. σais the difference between v(yminus) and v(y) whereas σbis the difference between v(y) and v(yplus) as shown in the figure 2 . When a pattern is checked on yminus, y, yplus, the label l of the pattern is used to label the point y.

Figure 2: Example of pattern.

Definition 4. A labeled time series is a time series of points on which the labels detected by the patterns are added.

Definition 5. A point yi of a labeled time series is defined by a triple (ti, vi, Li) where tiis the timestamp,

viis the value and Li= {l1,l2, ...} is a list of labels that

characterizes the point as a remarkable point. So, the patterns are independently used to detect remarkable points and add them their corresponding label. Thus, the list of labels of a point consists of all the labels of all the different patterns that are triggered on this point. The figure 3 illustrates an extract from a labeled time series of index data that tends to grow. It presents four examples of patterns (Normal, Ptpicpos, Ptpicneg, Changniv). Let us notice the point number 4 which includes two labels (Ptpicneg, Changniv).

Figure 3: Labellization of a remarkable point ”y” by a pat-tern.

Example. Let us give some examples of patterns de-fined with the help of the experts and used to label the curve of the figure 3 :

• remarkable ”Positive Peak Point” (Ptpicpos, 100, 100) where Ptpicpos represents the descriptive la-bel of the pattern, σa= 100 and σb= 100; • remarkable ”Negative Peak Point” (Ptpicneg,

-100, -100);

• remarkable ”Level Shift” (Changniv, 1000, -100).

The Algorithm 1, called EvaluatePattern, allows to evaluate the patterns using rules. This function takes as input three successive points denoted yminus,

yand yplusand the pattern to be evaluated, and returns the result of the evaluation: the pattern is triggered or not. Different verification rules are applied by the algorithm according to the signs of σa and σb. The rules to compare yminusand y according to σaare:

• If σa>0, the rule is v(y) >= v(yminus) + σa; • If σa<0, the rule is v(y) <= v(yminus) + σa; • If σa= 0, the rule is v(y) = v(yminus);

Figure 4: Labelization of a series by remarkable points.

Algorithm 1: Pattern evaluation.

function BOOLEAN EVALUATEPAT

-TERN(yminus,y, yplus,p)

Input yminus,y, yplus: point, p=(Lp, σa, σb): pattern Output Boolean

if p.σa>0 then

left←(v(y) ≥ v(yminus) + p.σa? true:false) else if p.σa<0 then

left←(v(y) ≤ v(yminus) + p.σa? true:false) else if p.σa= 0 then

left←(v(y) = v(yminus)? true:false) end if

if p.σb>0 then

right←(v(y) ≥ v(yplus) + p.σb?true:false) else if p.σb<0 then

right←(v(y) ≤ v(yplus) + p.σb? true:false) else if p.σb= 0 then

left←( v(y) = v(yplus)? true:false) end if

return (left and right) end function

3.2.2 Composition of Patterns

Experts can find anomalies by searching for spe-cific combinations of remarkable points and by com-paring their corresponding values. So, the goal is to model these particular successions of remarkable points. From a subset of points of a labeled time se-ries, we can construct a composition of labels by con-catenation of the Lilabels of these remarkable points. Such compositions of labels are used to detect anoma-lies. Finally, an anomaly is recognized by a compo-sition of labels on successive points and the verifica-tion of condiverifica-tions on the values of the corresponding points.

Definition 6. An anomaly can be find starting from a remarkable point from which are checked i) a compo-sition of labels in the following points and ii) a condi-tion expressed on the values of the points involved in The
rules
to
compare
y
and
yplus
according
to
σb
are

similar
(see
Algorithm
1).

Algorithm
2
uses
the
EvaluatePattern
function
to
process
a
time
series.
It
takes
as
input
the
initial
time
series
and
the
list
of
patterns
and
returns
a
new
labeled
time
series.
The
processing
consists
in
browsing
the
time
series
and,
for
each
pattern,
add
the
label
pattern
to
the
point
when
the
pattern
is
triggered.

The
result
of
Algorithm
2
is
a
labeled
time
se-ries
(points
tagged
with
labels).
The
figure
4
presents
an
example
of
labeled
time
series
produced
by
Algo-rithm
2.
Just
notice
that
a
point
can
be
labeled
with
one
or
more
labels.

Algorithm 2: Remarkable point detection.

Input Y = {y1,y2,y3....}: time series,

P= {p1,p2,p3....}: list of patterns

Output YLa labeled time series for i in range(2..|Y |-1) do

for k in range(1..|P|) do

if EvaluatePattern(yi−1,yi,yi+1,pk) then

Li<−Li+ pk.L// Add pk.Lto yilabels end if

end for end for

return YL

the composition. The anomaly is finally identified on one or more points of this composition.

Figure 5: Grammar for the definition of a composition of labels.

To define a composition of labeled points, we pro-pose a grammar, illustrated in the figure 5, which de-fines the elements of a composition of labels. The grammar is expected to define the possible labels (one or more) on successive points that allow to recognize a composition of labels. The grammar starts from la-bels placed on the points (<label>). Lala-bels can be combined on a single point with logical expressions AND, OR and NOT . For example, ”l1 AND NOT l2 AND l3” designates a point labeled with l1, labeled with l3 and not labeled with l2. Each label compo-sition on a single point can be repeated on successive points by quantifiers: ?, + and * (<label-enum>). For example, ”(l1)+” then means one or more successive points labeled with l1. The final label composition is defined by successive combinations of different la-bels on single or multiple points by using ”.” opera-tor (<composition>). For example, ”l1.(l2)*.l1 OR l3” means a point labeled with l1 followed by zero or more points all labeled with l2 followed by a point labelled with l1 or with l3.

Definition 7. Composition of labels Thus, a compo-sition of labels to recognize an anomaly is composed of three parts:

• composition: the composition of the labels on successive points. It is defined according to the grammar presented in the figure 5;

• condition: a condition between the values of the recognized points corresponding to the sequence of the labels of the composition. Indeed, the same label composition on successive points can cor-respond to different anomalies and the condition allows to identify only one anomaly. This con-dition on values is a classical concon-dition created using the operators (<, <=, ...) to compare val-ues and logical operators (and/or/not) to combine comparisons. To avoid the use of v(y) notation, we denote by vi the value of the ith point recog-nized by the composition, v1the first one and vn

the last one; note that the number of points in-volved in the composition can be variable; • conclusion: the identified anomaly for which are

indicated its type (name of the anomaly) and the list of points where the anomaly is.

We can thus define label compositions to identify anomalies. For example, we give hereafter three ex-amples of anomalies to be detected as presented in the introduction: i) anomaly of constant values, ii) anomaly of values in negative peak, iii) anomaly of values in positive peak; the latter is possibly recog-nized from 2 label compositions.

Some composition of labels to recognize the above anomalies are given hereafter:

Label-composition 1

composition: Begincstpos . Cst* . Endcstneg; condition: v1== v2and vn−1== vn;

conclusion: constant− > all; Label-composition 2

composition: Normal . Ptpicpos . Ptpicneg . Normal; condition: v2<v4and v3<v1;

conclusion: negative peak− > v3;

Label-composition 3

composition : Normal . Ptpicpos . Ptpicneg . Normal; condition: v2>v4and v3>v1;

conclusion: positive peak− > v2;

Label-composition 4

composition: Normal . Ptpicpos . Ptpicneg AND Changnivneg . Normal;

condition: v2>vnand vn−1>v1;

conclusion : positive peak− > v2;

Let us consider the compositions presented in the figure 4 in red. The indices ranging from 2 to 5 give the following series of labels: ( Normal . Ptpicpos . Ptpicneg and Changnivneg . Normal) detected by the composition of labels 4 of the examples above. This composition makes it possible to detect the positive peak anomaly in 3 when considering the condition.

The index points from 8 to 11 (”Normal . Ptpic-pos . Ptpicneg . Normal”) , triggers the label compo-sitions 3 and 2:

• Label composition 3: the condition leads to v9>

v11and v10>v8which is false so the composition

is not valid;

• Label composition 2: the condition leads to v9<

v11and v10<v8which is true therefore the

com-position is valid and the Negative Pic anomaly is recognized in point 10 (v10);

abnormal change such as positive or negative peaks, nearly 380. And finally, there is eight level shift due to sensor change. In order to detect the remarkable points, we created 14 patterns and 12 label compo-sitions of these patterns to detect the anomalies de-scribed above.

4.2

Experimentation on Real Case Time

Series

In this part, we explore the different anomaly detec-tion methods described in Table 1. Our motivadetec-tion to consider these methods is to broaden the scope of analysis to test their effectiveness in detecting the anomalies considered in this paper and to compare the results against our approach. As noted above, these techniques have proven effective in detecting anoma-lies in the sensor data. On the other hand, as we will see through the results of the experiments, none of these methods is perfect to detect all the types of anomalies that we observed in the real deployments. Thus, we present an evaluation of the following meth-ods: Short rule, Constant rule, LOF, ARIMA, S-H-ESD and the change of point. We applied these meth-ods by category of anomalies as indicated in the Ta-ble 1. In order to evaluate the performance of these methods we use the number of true positives (true detected anomalies ), the number of false positives (false detected anomalies ) and the number of false negatives (true undetected anomalies) as evaluation metrics. The results are presented in the figure 6 as follows: the method based on the Short rule and the method based on the Constant rule are noted SR and CR respectively while the Change Point is noted LS.

For each method we also report the Precision, Re-call, F-measure metrics to compare and evaluate the results of anomaly detection. As shown in Figure 6A and B, we applied methods that are able to detect the abrupt change between two successive samples that could be a positive or negative peak or a small vari-ation. We presented LOF results in a separate chart

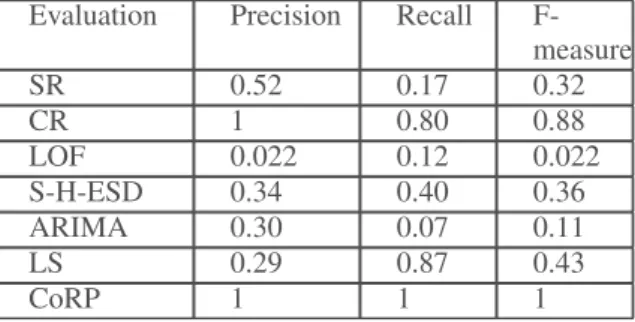

Table 2: Evaluation of anomaly detection methods for index data sets.

Evaluation Precision Recall F-measure SR 0.52 0.17 0.32 CR 1 0.80 0.88 LOF 0.022 0.12 0.022 S-H-ESD 0.34 0.40 0.36 ARIMA 0.30 0.07 0.11 LS 0.29 0.87 0.43 CoRP 1 1 1

4

EXPERIMENTAL
SETUP

In
this
section,
we
will
first
introduce
our
case
study.
Then
we
analyze
the
results
of
the
algorithm
of
the
literature
as
well
as
our
algorithm
on
our
data
sets.
Then,
we
evaluate
more
these
algorithms
with
bench-marks
data
and
finally,
we
present
the
computational
performances
of
the
algorithms
explored.

4.1

Description
of
the
Case
Study

The
field
o f
a pplication
t reated
i n
t his
p aper,
i s
the
sensor
network
of
the
Management
and
Exploitation
Service
(SGE)
of
Rangueil
campus
attached
to
the
Rectorate
of
Toulouse.
This
service
exploits
and
maintains
the
distribution
network
from
the
data
re- lated
to
the
different
installations.
More
than
600
sen-sors
of
different
types
of
fluids
(calorie,
water,
com-pressed
air,
electricity
and
gas),
which
are
scattered
in
several
buildings,
are
managed
by
the
SGE
supervi-sion
systems.
For
this
paper,
we
focus
on
calorie
data
and
we
processed
25
sensors.
Thus,
we
analyze
calo-rie
measurements
collected
every
day
for
more
than
three
years
collected
from
the
25
sensors
deployed
in
different
buildings:
1453
data
per
sensor
which
is
36325
data
points
in
total.
The
measurements
of
these
sensors
are
reassembled
at
a
regular
frequency
and
represent
the
indexes
(readings
of
sensors)
which
are
used
to
measure
the
quantities
of
energy
consumed
(by
successive
value
differences,
consumption).
We
were
able
to
identify
the
types
of
anomalies
that
ex-ist
in
the
calorie
data
through
the
knowledge
gained
from
the
SGE
experts
by
visually
inspecting
the
data
sets.
The
examples
of
faults
presented
in
the
figure
1
are
taken
from
these
same
data
sets.
The
predomi-nant
anomaly
in
these
readings
is
the
constant
values,
nearly
8578
observations
on
all
the
data
and
this
is
following
the
stopping
of
the
sensors.
We
also
found
among
these
values,
several
constants
with
an
offset.
Typically,
a
constant
with
a
level
shift
that
begins
with
a
positive
or
negative
peak.
Then,
there
is
a
lot
of

Figure 6: Evaluation of anomaly detection methods on index data.

for more visibility. These methods are not fully auto-mated and therefore we need to select the parameters such as the threshold for the short rule, the neighbor number for LOF or the model type for ARIMA etc. The LOF method, which is based on the nearest K neighbors, produces an index, called the score func-tion, which represents the degree of anomaly assumed for the observations. It is then sufficient to define a threshold to qualify the ”normal” and ”abnormal” re-sults. In our experiments we have varied the choice of K in a range of 30 to 10 in order to evaluate the influence of this parameter on the detection result and we have judged a threshold = 1.5 corresponding to an observation in the standard of distribution scores. For the Short rule, we need to set a threshold to compare it with the variation between successive observations. To this end, we used the histogram-based method de-scribed in Section 5.2. And finally, for the Constant rule, we have varied the choice of size of sliding win-dow in a range of 30 to 10.

Based on the results presented in the Figure 6, we make the following observations: LOF is the method

Table 3: Evaluation of anomaly detection methods in con-sumption data sets.

Evaluation Precision Recall F-measure SR 0.66 0.63 0.64 CR 1 0.72 0.83 LOF 0.39 0.78 0.52 S-H-ESD 0.41 0.80 0.54 ARIMA 0.66 0.25 0.36 CoRP 1 0.98 0.98

that generates the most false positives while ARIMA generated the most false negatives. The S-H-ESD method is the method that can detect the most True positive among them, but on the other hand it causes a lot of false positives and false negatives. Then the method based on the Short rule detects fewer anoma-lies by comparing with S-H-ESD. However, it causes fewer false positives than the other methods.

Based on Table 2 and figure 6 we observe that: i) the efficiency of the Constant rule or the LOF method strongly depends on the choice of the sliding window or the number of neighbors. ii) The Change Point method works well when there is actually a true level shift in the time series but however, in the absence of anomaly it has a low accuracy. iii) Between the Short rule, ARIMA and S-H-ESD, the Short rule is the most accurate and ARIMA is the least efficient for detecting abnormal change. By comparing with these methods, our CoRP algorithm can detect all types of anomalies with better accuracy and recall. In effect, CoRP works very well on the index data and typically on our real case study.

To further evaluate our algorithm and to demon-strate the effectiveness of the anomaly detection methods, we used SGE consumption data. So, we took the measurements that come from 25 sensors. Consumption data are seasonal data and their daily evolution, unlike index data, are somewhat variable. We have manually inspected these data to understand how these data work and to create patterns of anoma-lies that may exist. The anomaanoma-lies we have seen in the data are: positive and negative peaks, constant anomalies, constants that start and end with a big peak. Since the data is not stationary, we did not

ap-Table 4: Evaluation of anomaly detection methods in Benchmark data sets.

Datasets HIPC IPI

Algorithm

Evaluation

Precision Recall Precision Recall

CoRP 1 0.80 0.75 0.75 ARIMA 1 1 1 1 LOF 0.11 0.20 0 0 S-H-ESD 0.20 0.20 0.33 0.25 RC 0 0 0 0 LS 0 0 0 0

ply the Change Point algorithm because there is no level shift in this data to be detected. Thus we have created 9 patterns to detect remarkable points and 5 label compositions to detect anomalies.

According to the results presented in figure 6, we can say that the number of neighbors equal to 20 is the most appropriate choice to detect the most anomalies in LOF algorithm. However, for the Constant rule, it is important to use a window size small enough to handle data sets containing a large number of con-stant values. It can be seen from Table 3 that the literature algorithms are much more efficient on the consumption data by comparing with the index data. Even with this type of data, our approach has obtained the best result of F-measure by comparing with other algorithms. Actually, he detected the most anomalies with the least possible errors with a precision equal to 1 and a recall equal to 0.98. Then, the result of the rule-based method (SR, CR) and the ARIMA method was close to the best and obtained the best accuracy with respect to LOF and SH-ESD. On the other hand, SH-ESD is the method that was closest to the best result in terms of recall with a value equal to 0.80. But it should be noted, that these algorithms that we evaluated cannot detect all the types of anomalies ob-served in the data which means that each algorithm is efficient in a specific type. The particularity of our method is that we can set the patterns and the compo-sition of labels according to our needs to detect, with a great precision and efficiency, all the types of anoma-lies observed in the real deployments.
